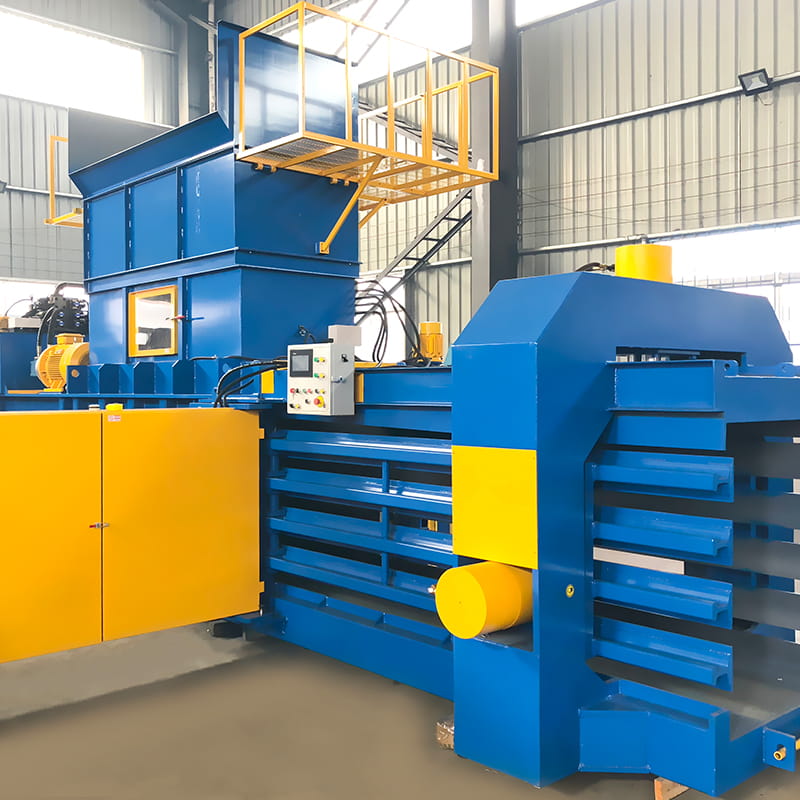

Horizontal PP Horizontal Automatic Baler

Scope of application:

Widely used in paper mills, printing plants, packaging plants, garbage sorting and recycling stations, recycling stations, and other places;

It is suitable for recycling, compression, and packaging of loose materials such as waste paper, waste cardboard, paper mill waste paper scraps, waste books, plastic films, cloth, fibers, and straw. It can be used in conjunction with conveyors or air ducts.

Performance features:

●The hydraulic cylinder automatically adjusts the size of the package outlet, which is stable and safe, and the packaging density can be adjusted freely.

●Photoelectric switch automatically detects materials to achieve fully automatic function.

●Reasonable double-scissor blade design improves paper-cutting efficiency and extends blade service life.

●The main oil cylinder adopts a lug bracket and ball end face design, which can eliminate the torque acting on the main shaft and significantly extend the life of the oil seal.

●Equipped with a unique wire-binding device to reduce the failure rate and facilitate cleaning, maintenance, and repair.

●Using differential technology to make packaging faster, thereby improving work efficiency and saving power.

●The package length can be freely set, and the package value can be accurately recorded for the convenience of the operator.

●Automatically detect faults and display them automatically to improve detection efficiency.

●International standard circuit layout, graphic operating instructions, and detailed component labels make it easy for operators to understand and improve maintenance efficiency.

●The design of high-strength force-bearing beams and frames ensures stable operation and durability of the machine.

●No special site infrastructure is required, making installation simple and easy.

Taixing Xianghong Environmental Protection Machinery Co., Ltd.

Type	Pressure （Ton）	Pack Size （WHL)mm	Feeding Port Size （L*W）mm	Packing Density (kg/m3)	Number Of Bale Lanes	Packaging Ability （Ton/hr）	Main Power/Horsepower （KW/HP）	Machine Size （LWH）mm	Machine Weight （Ton）
XHA30-5050	30	500500500	800*440	200-300	3-5	0.5-1	7.5/10	360047102150	4
XHA40-7272	40	720720（500-1500）	1500*640	350-450	4	1.5-2.5	15/20	630030002100	6.5
XHA60-8575	60	850750（500-1500）	1500*770	400-500	4	3-4	22/30	880033003000	8
XHA80-11075	80	1100750（500-1800）	1800*1020	450-550	4	4-7	37/50	800037003800	12
XHA100-110110	100	11001100（500-1800）	1800*1020	500-600	4	7-11	45/60	1000037004600	16
XHA120-110110	120	11001250（500-1800）	2100*1020	550-650	5	8-13	55/75	1100037004900	19
XHA150-110125	150	11001250（500-1800）	2400*1020	600-750	5	10-15	（45/60）*2	1160037005100	23
XHA200-110125	200	11001250（500-1800）	2400*1020	700-850	5	14-18	（55/75）*2	1160037005100	30

Model	pressure (Ton)	Lump size （WHL)mm	Size of the feeding port （L*W）mm	Packing density (kg/m3)	Number of bundle lanes	Packing capacity （Ton/hr）	Main power/horsepower （KW/HP）	Machine size （LWH）mm	Machine weight (Ton)
XHA30-5050	30	500×500×500	800×440	200-300	3-5	0.5-1	7.5/10	3600×4710×2150	4
XHA40-5050	40	500×500×(300-1200)	800×440	280-350	3	1-1.5	11/15	6100×2800×4000	4.8
XHA60-7272	60	720×720×（500-1500）	1500×640	350-450	4	1.5-2.5	15/20	6300×3000×2100	6.5
XHA80-11075	80	1100×750×（500-1800）	1800×1020	450-550	4	4-7	37/50	8000×3700×3800	12
XHA100-110110	100	1100×1100×（500-1800）	1800×1020	500-600	4	7-11	45/60	10000×3700×4600	16
XHA120-110110	120	1100×1250×（500-1800）	2100×1020	550-650	5	8-13	55/75	11000×3700×4900	19
XHA150-110125	150	1100×1250×（500-1800）	2400×1020	600-750	5	10-15	（45/60）*2	11600×3700×5100	23
XHA200-110125	200	1100×1250×（500-1800）	2400×1020	700-850	5	14-18	（55/75）*2	11600×3700×5100	30
